Domestic Hot Water Heat Pump ED 100P/180P Series

The new eco-conscious generation of DHW heat pump.

Our innovative ECO Fresh 100P/180P is the most economical, ecological and smart way to produce hot water for your home. Save up to 75% on your yearly energy consumption at the highest degree in comfort.

This new generation of heat pump uses R290 (Propane) as refrigerant, which is not only friendly to the environment – as compared to conventional refrigerants – but we also made it extremely efficient. Together with our innovative 4th generation insulation for the storage tank, the 100P/180P series is the most efficient and ecological solution on the market to date and already today complies with the legal requirements of tomorrow.

Download Flyer

Main Features

The ED Fresh 100P/180p series is designed for functionality and for a long lifespan:

  • Stainless-Steel Storage Tank (Grade 444): requires virtually no maintenance!
  • Premium Internal Glass Coating
  • 4th Gen High-Performance CFC-Free Insulation
  • Standby Heat loss only 6W
  • Certified HP Efficiency – COP 3.05 / 3.2
  • Nominal Pressure: 10 bar (tested at 13 bar)
  • Very Silent Operation (Perception Optimized)

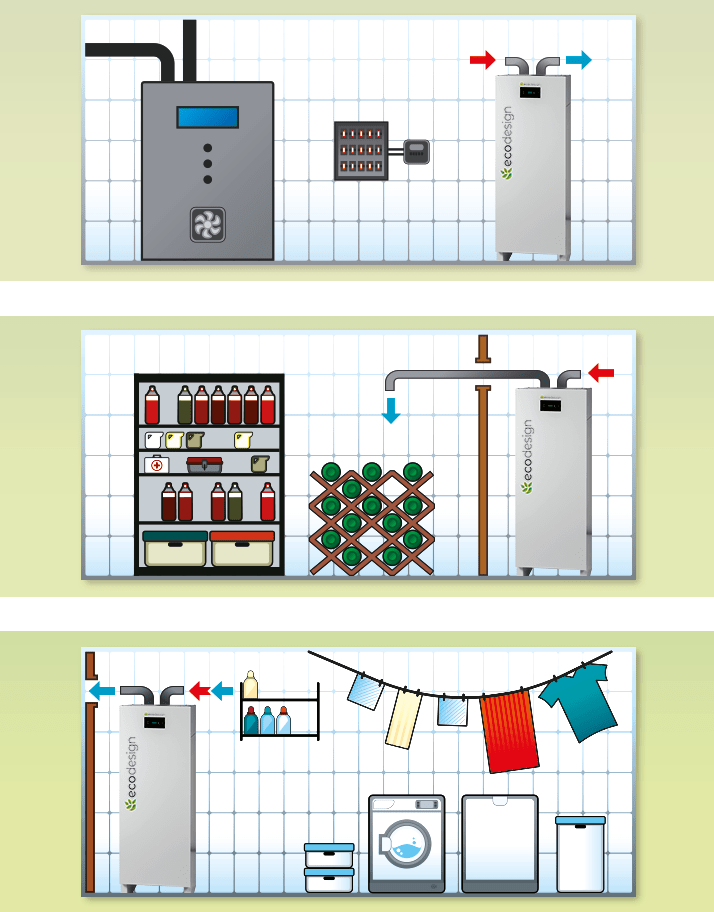

  • 3 Installation Modes: Ambient Air, External Air, Extracted Air
  • Permanent Protection against Corrosion: thanks to a generously dimensioned anode (Magnesium with automatic wear indicator)
  • The extended operating range (incoming air temperature) from -10°C to +35°C guarantees full year functioning for all operating modes
  • Automatic Hot Gas De-Icing Function – increases efficiency
  • CAF: continuous air flow, a function, which operates the fan independently of the heat pump for controlled ventilation
  • Plug n’ Play, Fast and Easy Installation (extremely installer friendly)

Smart Control

  • Smart Grid Interface: Make most of your photovoltaic power and/or multi-tariff counters. The only control with 3 distinct energy levels and adjustable savings potential
  • Sophisticated Electronic Control Unit.
  • Useful Functions: BOOST, TIMER, HOLIDAY, LEGIONELLA PROTECTION, ADJUSTABLE FROST PROTECTION
  • Ease of use; large 2-line display, plain text, intuitive one button operation

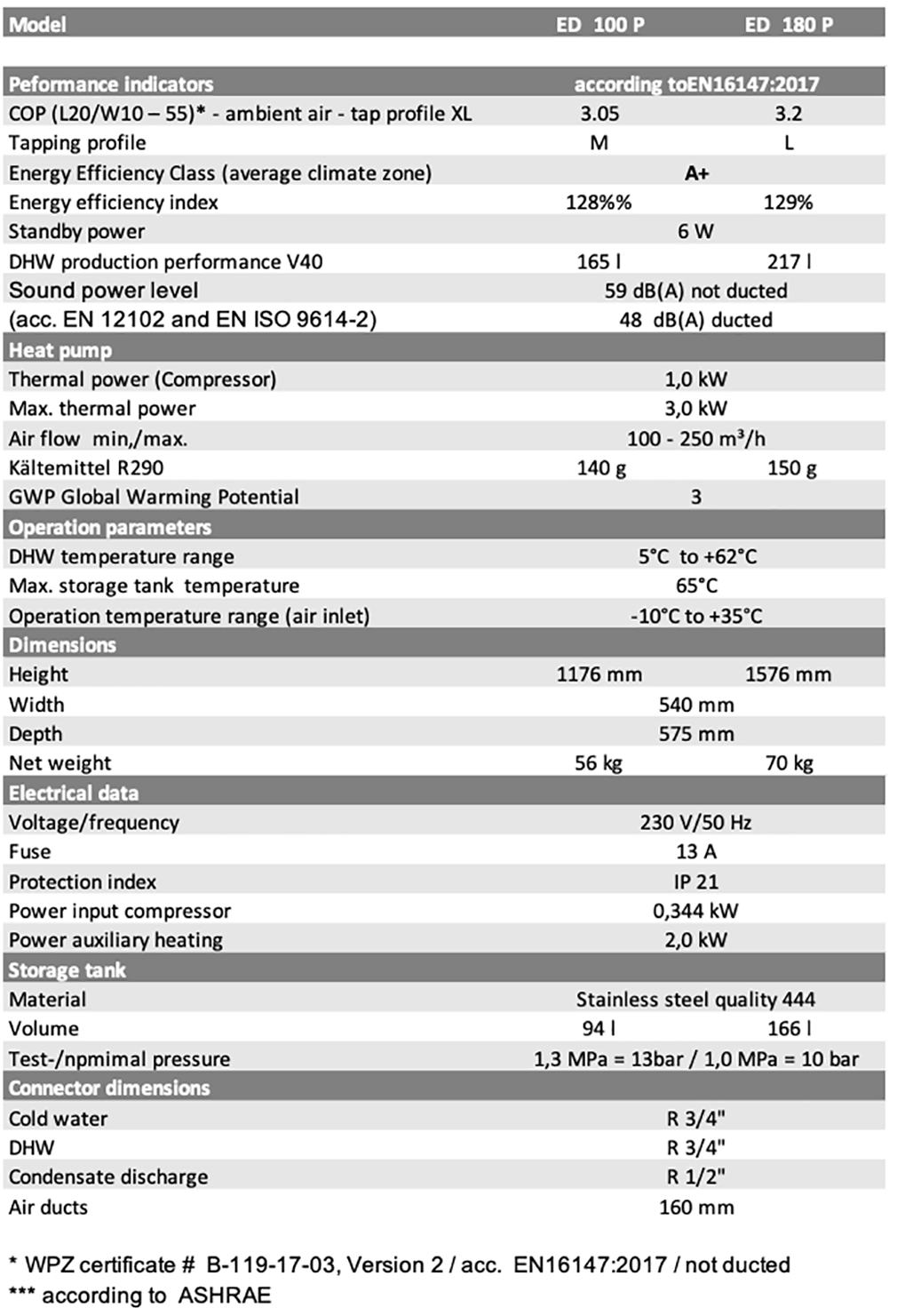

Technical Specifications

Transport and Installation

  • The very compact design allows the ED 100P/180P to be installed in virtually any space
  • The ED 100P/180P can be wall mounted, if desired
  • Your ED 100P/180P is Plug n’ Play. The pre-configured settings ensure that your heat pump is operational out of the box

For more information, please call us on +49(0)9721 64 83 000
or don’t hesitate to contact us by Email.
